Securely Authenticate Power Pages Users with a Custom ASP.NET Web API

Authors
  • avatar
    Name
    Konrad Bartecki
    Twitter

Securely Authenticate Power Pages Users with a Custom ASP.NET Web API

Introduction

When building powerful solutions on the Power Platform, you might find that certain complex workloads are better handled by a custom backend, such as an ASP.NET Web API. This presents a common challenge: how do you securely authenticate users who are already logged into your Power Pages portal when they need to call your custom API?

The goal is to avoid forcing users to log in again. We want to leverage their existing Power Pages session to seamlessly grant them access to the custom API.

This tutorial will guide you through the process of using the OAuth 2.0 Implicit Grant Flow to issue a JWT (JSON Web Token) from Power Pages. This token can then be validated by your custom ASP.NET Web API, effectively connecting your two systems securely.

The Authentication Flow: How It Works

The core of this solution relies on public-key cryptography and a standard authentication flow. Here's a high-level overview:

  1. Public/Private Key Pair: We will generate a digital certificate, which contains a public and private key.
  2. Power Pages (The Signer): We'll configure Power Pages with the certificate. When a logged-in user requests a token, Power Pages uses the private key to sign a JWT. This token contains information about the user (their claims) and is cryptographically signed to prove its origin.
  3. Custom Web API (The Verifier): Your API will fetch the public key from a specific Power Pages endpoint. When your API receives a request with the JWT, it uses this public key to verify the token's signature. If the signature is valid, the API can trust that the token was issued by your Power Pages portal and contains accurate user data.

Why the Implicit Grant Flow?

The Implicit Grant Flow is an OAuth 2.0 flow designed for client-side applications, like the JavaScript running in a user's browser on a Power Pages site. In this flow, the access token (the JWT) is returned directly to the client from the authorization endpoint. This is suitable for scenarios where the application cannot securely store a client secret, which is precisely the case for front-end JavaScript.

Implementation: A Step-by-Step Guide

Let's walk through the configuration process from start to finish.

Step 1: Create a Self-Signed Certificate (.pfx)

For this process, we need a PFX certificate file containing both the private and public keys. For development and testing, a self-signed certificate is sufficient. For production, you should always use a certificate issued by a trusted Certificate Authority (CA).

We will use OpenSSL to generate the certificate. Open your terminal and run the following commands.

# 1. Create a directory for your certificate files
mkdir ~/powerpages-auth-cert
cd ~/powerpages-auth-cert

# 2. Generate a 2048-bit private key
openssl genrsa -out custom-api-auth.key 2048

# 3. Create a configuration file for the certificate request.
#    Replace the CN and DNS.1 value with your Power Pages portal URL.
cat > cert.conf <<EOF
[req]
distinguished_name = req_distinguished_name
x509_extensions = v3_req
prompt = no

[req_distinguished_name]
# Replace with your portal's URL
CN = yourportal.powerappsportals.com
O = Your Company Name
C = US

[v3_req]
keyUsage = keyEncipherment, dataEncipherment
extendedKeyUsage = serverAuth
subjectAltName = @alt_names

[alt_names]
# Replace with your portal's URL
DNS.1 = yourportal.powerappsportals.com
EOF

# 4. Generate the self-signed certificate, valid for one year
openssl req -new -x509 -days 365 -key custom-api-auth.key -out custom-api-auth.crt -config cert.conf

# 5. Export the key and certificate into a PFX file.
#    You will be prompted to create an export password. Remember this password!
openssl pkcs12 -export -out custom-api-auth.pfx \
  -inkey custom-api-auth.key \
  -in custom-api-auth.crt \
  -name "Your Portal URL" \
  -keypbe PBE-SHA1-3DES \
  -certpbe PBE-SHA1-3DES \
  -macalg sha1

You now have a custom-api-auth.pfx file. Protect this file and its password, as they contain your private key.

Step 2: Get the Certificate Thumbprint

The thumbprint is a unique hash that identifies your certificate. We'll use PowerShell to extract it from the PFX file.

  1. Open a PowerShell terminal.
  2. Navigate to the directory where you saved custom-api-auth.pfx.
  3. Run the following command. You will be prompted for the password you created in the previous step.

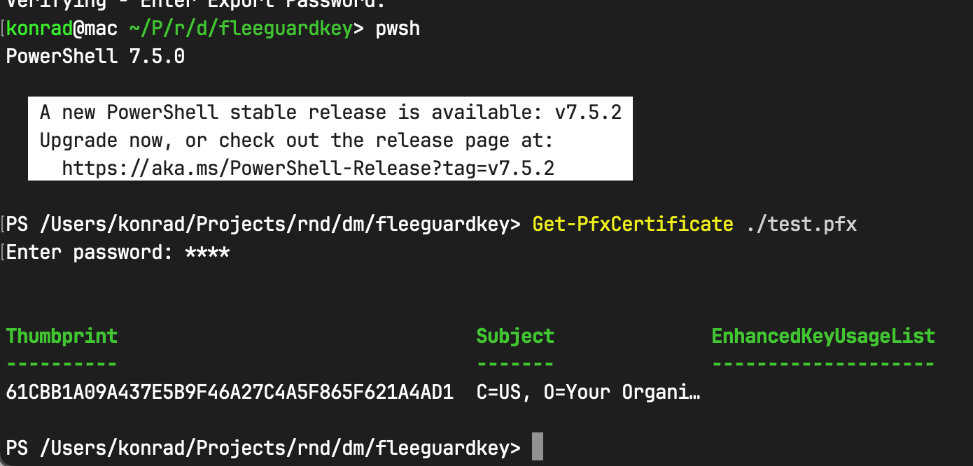

Get-PfxCertificate -FilePath ./custom-api-auth.pfx

PowerShell will display the certificate details. Copy the Thumbprint value—you will need it in the next step.

Step 3: Configure Power Pages Site Settings

Now, we need to tell Power Pages about our certificate by adding its thumbprint to the site settings.

  1. Navigate to make.powerapps.com.
  2. Ensure you have selected the correct Dataverse environment in the top-right corner.

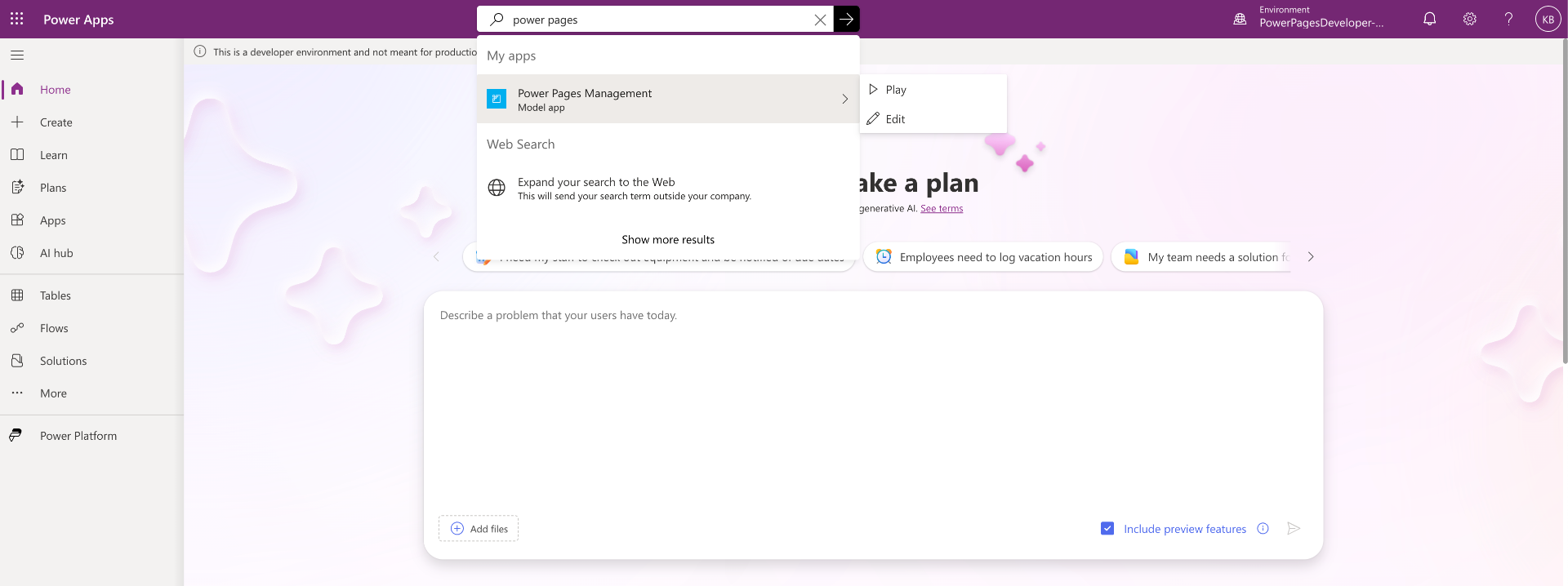

  3. In the search bar, type "Power Pages Management" and open the app by clicking Play. Note: This is a model-driven app used to manage backend settings for your portal.

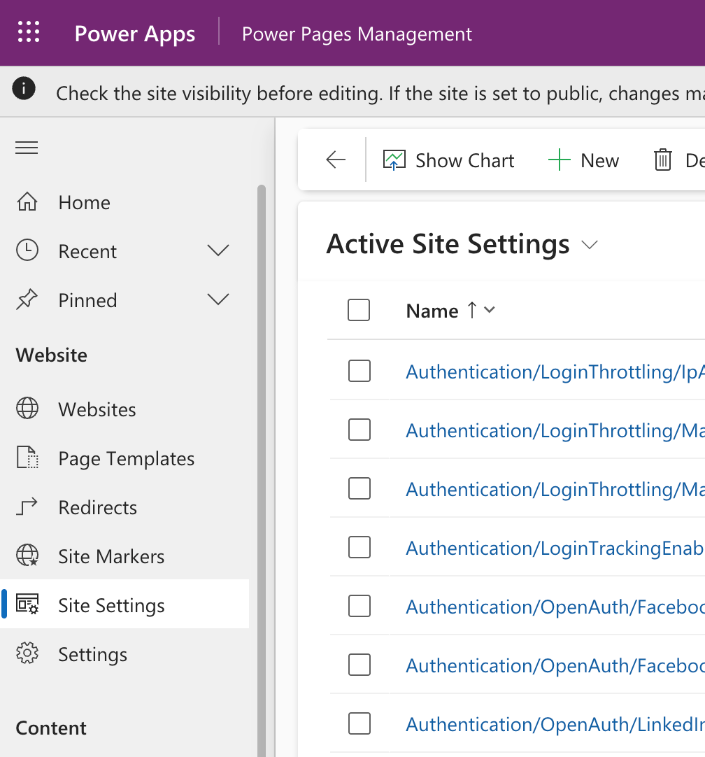

  1. Inside the Power Pages Management app, navigate to the Site Settings section in the left-hand menu.

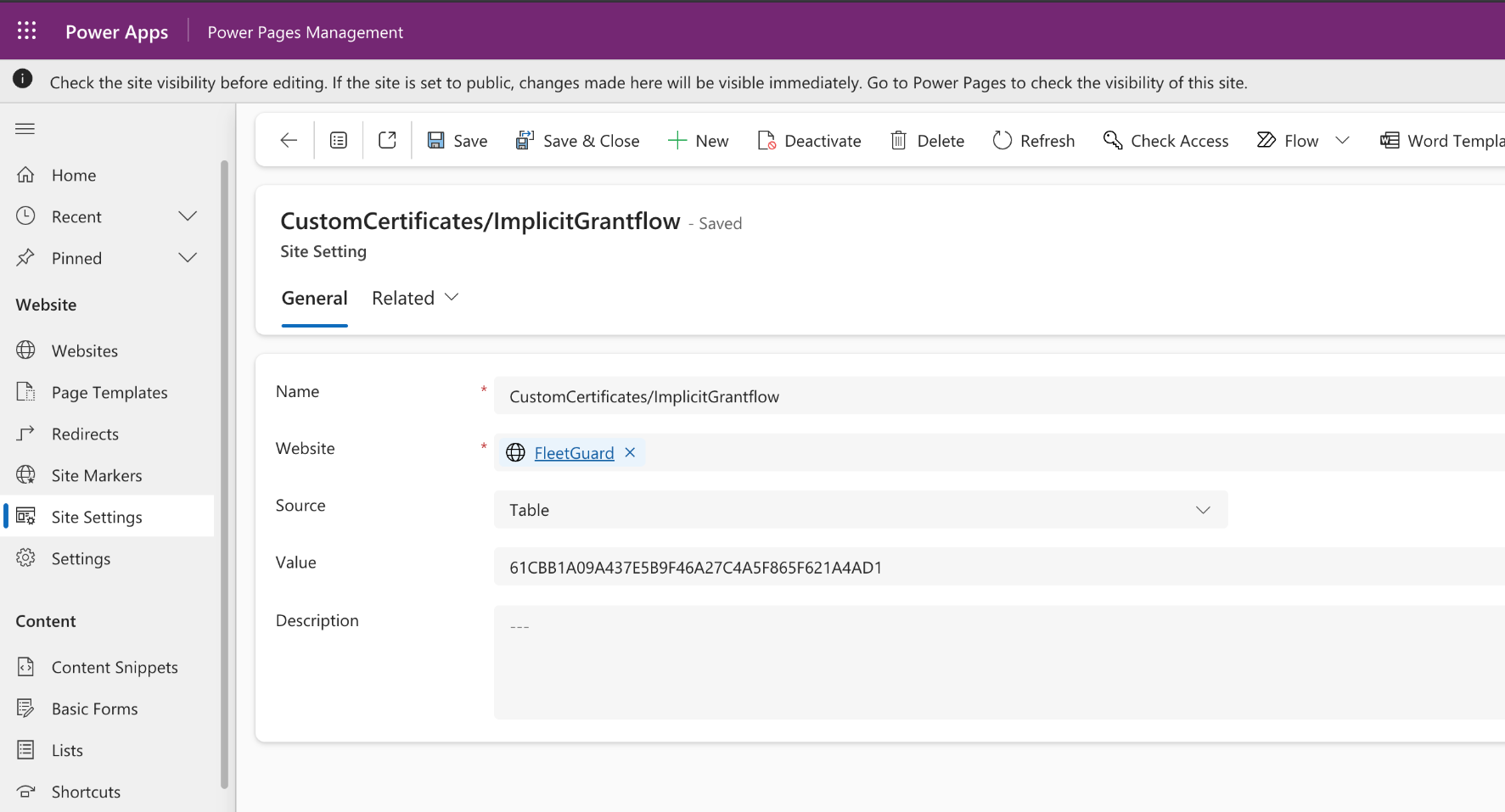

  1. Click + New to create a new site setting with the following details:

    • Name: CustomCertificates/ImplicitGrantflow
    • Website: Select your Power Pages site from the lookup.
    • Value: Paste the certificate thumbprint you copied from PowerShell.
    • Source Set to Table
    • Description: (Optional) A brief note, e.g., "Certificate for custom Web API authentication."

  2. Click Save & Close.

Step 4: Apply Changes and Restart the Portal

For the new site setting to take effect, you must clear the server-side cache.

There are two ways to do this: A) Restart the app or B) Purge the cache

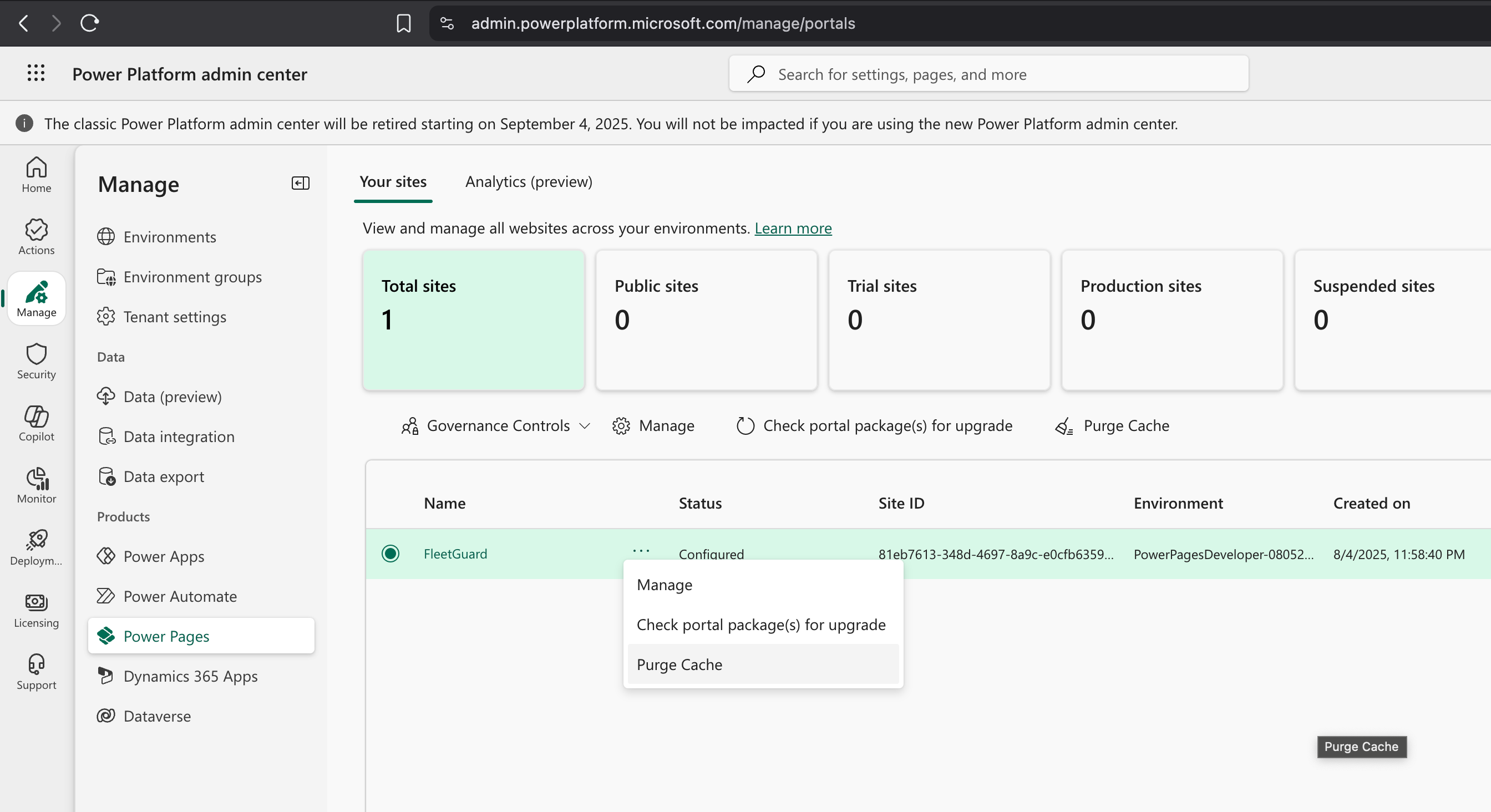

Option A: Purging the cache

  1. Go to the New Power Platform admin center / Manage / Portals.
  2. Click (...) and select Purge Cache

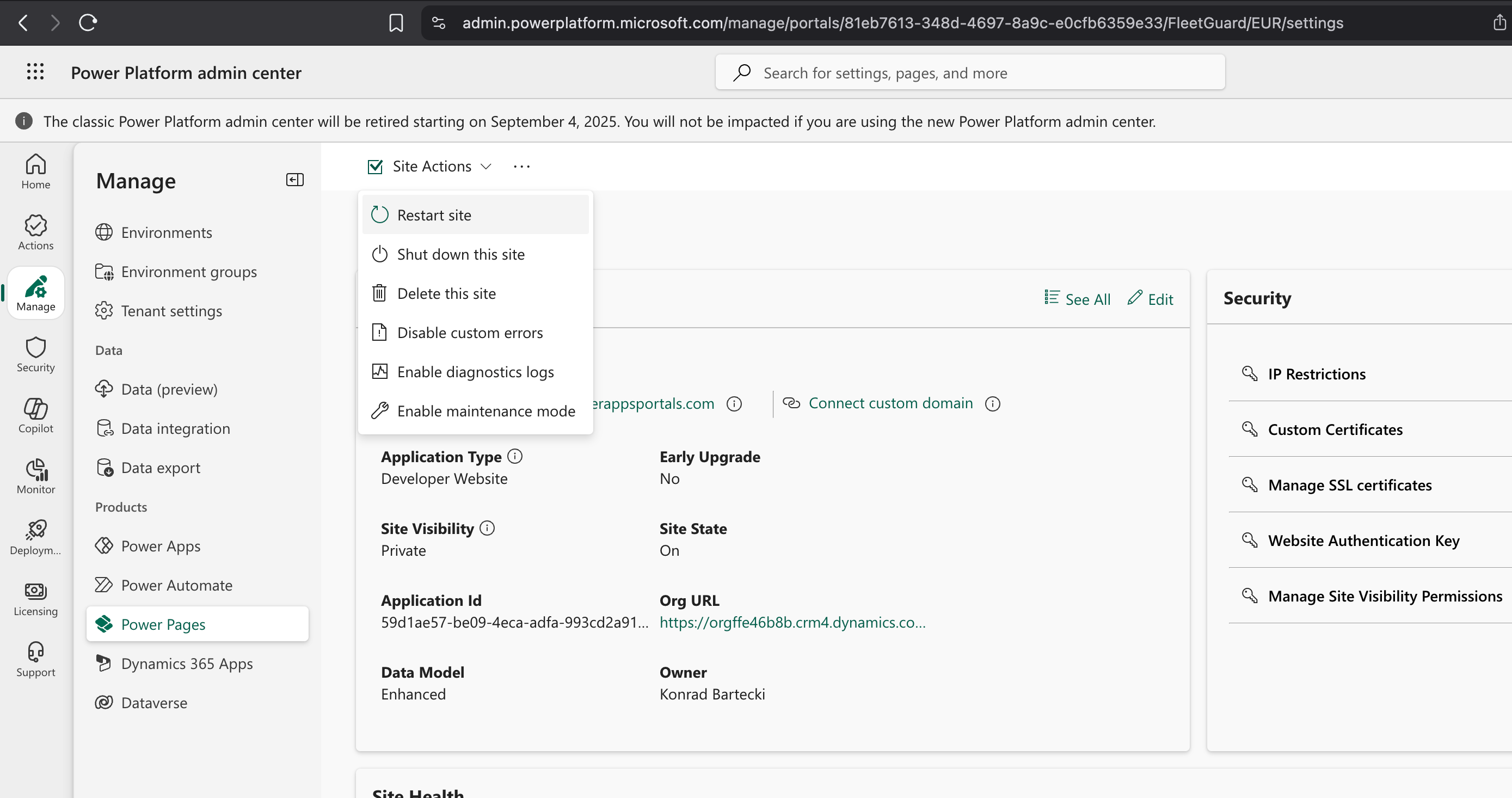

Option B: Restarting the app

  1. Go to the Go to the New Power Platform admin center / Manage / Portals.
  2. Select your Power pages portal.
  3. Select Site Actions > Restart Page

Result: Obtaining the JWT

With the configuration complete, any authenticated user can now request a JWT from your Power Pages site.

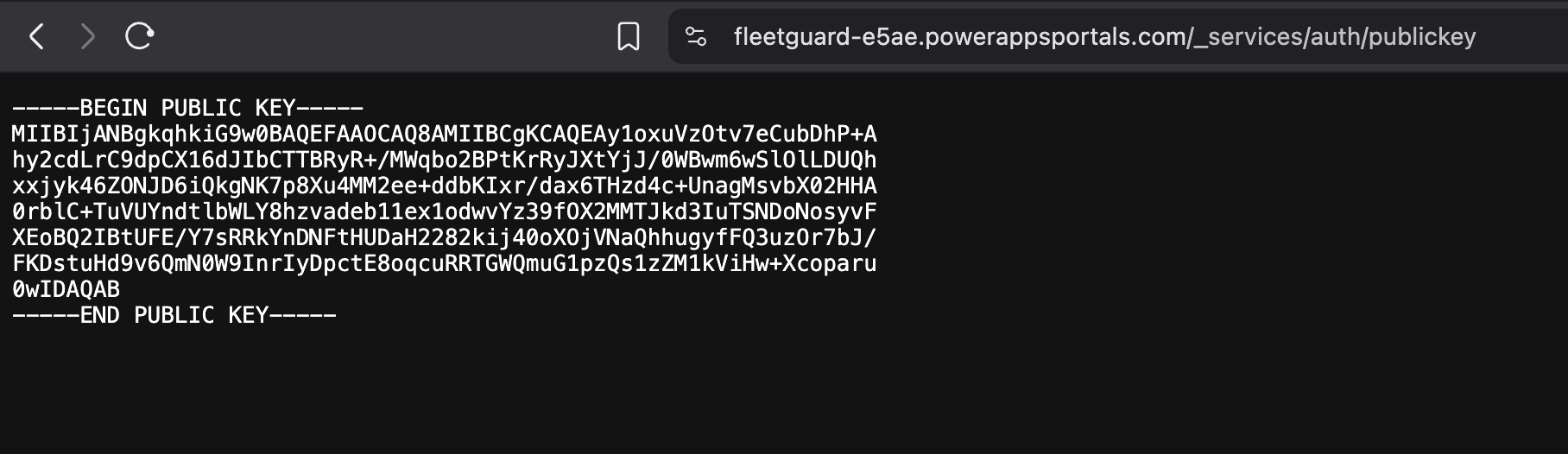

The token is available at the HTTP POST /_services/auth/token endpoint, and the public key for verification is at HTTP GET /_services/auth/publickey.

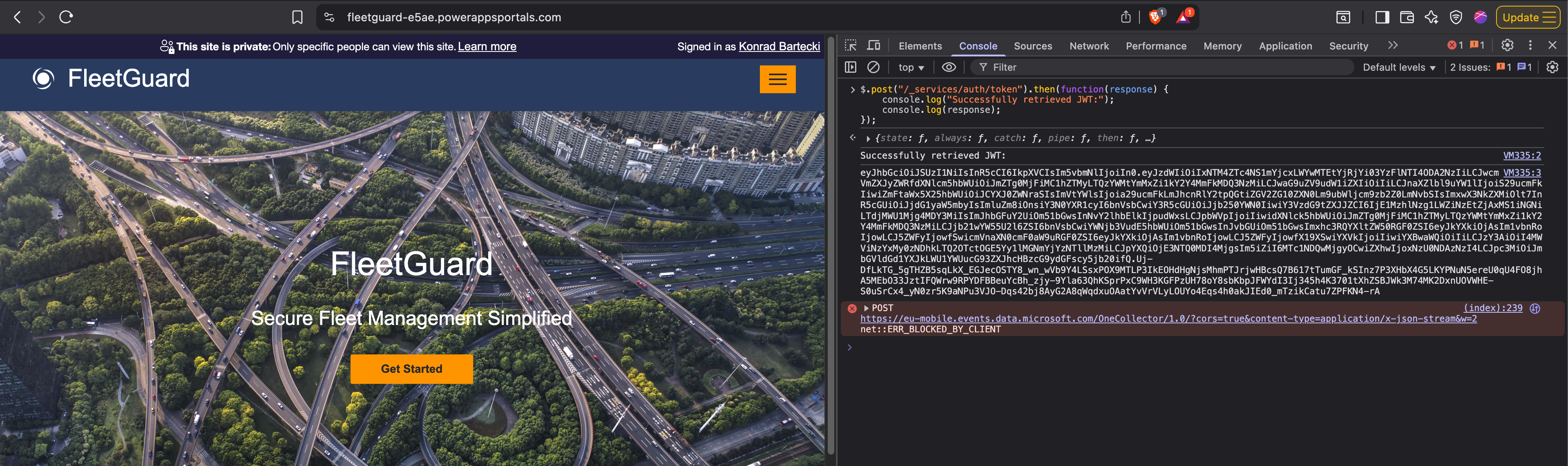

You can test this directly from your browser's developer console while logged into your portal. Run this jQuery snippet:

// This snippet makes a POST request to the token endpoint
$.post('/_services/auth/token').then(function (response) {
  console.log('Successfully retrieved JWT:')
  console.log(response)
})

If successful, a long, encoded JWT string will be printed to the console. This is the token your client-side code will send to your custom Web API in the Authorization header.

Example response of the HTTP POST /_services/auth/token endpoint

eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCIsIm5vbmNlIjoiIn0.eyJzdWIiOiIxNTM4ZTc4NS1mYjcxLWYwMTEtYjRjYi03YzFlNTI4ODA2NzIiLCJwcmVmZXJyZWRfdXNlcm5hbWUiOiJmZTg0MjFiMC1hZTMyLTQzYWMtYmMxZi1kY2Y4MmFkMDQ3NzMiLCJwaG9uZV9udW1iZXIiOiIiLCJnaXZlbl9uYW1lIjoiS29ucmFkIiwiZmFtaWx5X25hbWUiOiJCYXJ0ZWNraSIsImVtYWlsIjoia29ucmFkLmJhcnRlY2tpQGtiZGV2ZG10ZXN0Lm9ubWljcm9zb2Z0LmNvbSIsImxwX3NkZXMiOlt7InR5cGUiOiJjdG1yaW5mbyIsImluZm8iOnsiY3N0YXR1cyI6bnVsbCwiY3R5cGUiOiJjb250YWN0IiwiY3VzdG9tZXJJZCI6IjE1MzhlNzg1LWZiNzEtZjAxMS1iNGNiLTdjMWU1Mjg4MDY3MiIsImJhbGFuY2UiOm51bGwsInNvY2lhbElkIjpudWxsLCJpbWVpIjoiIiwidXNlck5hbWUiOiJmZTg0MjFiMC1hZTMyLTQzYWMtYmMxZi1kY2Y4MmFkMDQ3NzMiLCJjb21wYW55U2l6ZSI6bnVsbCwiYWNjb3VudE5hbWUiOm51bGwsInJvbGUiOm51bGwsImxhc3RQYXltZW50RGF0ZSI6eyJkYXkiOjAsIm1vbnRoIjowLCJ5ZWFyIjowfSwicmVnaXN0cmF0aW9uRGF0ZSI6eyJkYXkiOjAsIm1vbnRoIjowLCJ5ZWFyIjowfX19XSwiYXVkIjoiIiwiYXBwaWQiOiIiLCJzY3AiOiI4MWViNzYxMy0zNDhkLTQ2OTctOGE5Yy1lMGNmYjYzNTllMzMiLCJpYXQiOjE3NTQ0MDI4MjgsIm5iZiI6MTc1NDQwMjgyOCwiZXhwIjoxNzU0NDAzNzI4LCJpc3MiOiJmbGVldGd1YXJkLWU1YWUucG93ZXJhcHBzcG9ydGFscy5jb20ifQ.Uj-DfLkTG_5gTHZB5sqLkX_EGJecOSTY8_wn_wVb9Y4LSsxPOX9MTLP3IkEOHdHgNjsMhmPTJrjwHBcsQ7B617tTumGF_kSInz7P3XHbX4G5LKYPNuN5ereU0qU4FO8jhA5MEbO33JztIFQWrw9RPYDFBBeuYcBh_zjy-9Yla63QhKSprPxC9WH3KGFPzUH78oY8sbKbpJFWYdI3Ij345h4K3701tXhZSBJWk3M74MK2DxnUOVWHE-S0uSrCx4_yN0zr5K9aNPu3VJO-Dqs42bj8AyG2A8qWqdxuOAatYvVrVLyLOUYo4Eqs4h0akJIEd0_mTzikCatu7ZPFKN4-rA

Token's payload

{
  "sub": "1538e785-fb71-f011-b4cb-7c1e52880672",
  "preferred_username": "fe8421b0-ae32-43ac-bc1f-dcf82ad04773",
  "phone_number": "",
  "given_name": "Konrad",
  "family_name": "Bartecki",
  "email": "konrad.bartecki@kbdevdmtest.onmicrosoft.com",
  "lp_sdes": [
    {
      "type": "ctmrinfo",
      "info": {
        "cstatus": null,
        "ctype": "contact",
        "customerId": "1538e785-fb71-f011-b4cb-7c1e52880672",
        "balance": null,
        "socialId": null,
        "imei": "",
        "userName": "fe8421b0-ae32-43ac-bc1f-dcf82ad04773",
        "companySize": null,
        "accountName": null,
        "role": null,
        "lastPaymentDate": {
          "day": 0,
          "month": 0,
          "year": 0
        },
        "registrationDate": {
          "day": 0,
          "month": 0,
          "year": 0
        }
      }
    }
  ],
  "aud": "",
  "appid": "",
  "scp": "81eb7613-348d-4697-8a9c-e0cfb6359e33",
  "iat": 1754402828,
  "nbf": 1754402828,
  "exp": 1754403728,
  "iss": "fleetguard-e5ae.powerappsportals.com"
}

Next Steps: Validating the Token in ASP.NET

Your custom Web API must be configured to:

  1. Expect a JWT in the Authorization: Bearer <token> header.
  2. Fetch the public key from your portal's /_services/auth/publickey endpoint.
  3. Use the public key to validate the signature of any incoming JWTs.

You can achieve this in ASP.NET using the Microsoft.AspNetCore.Authentication.JwtBearer package and configuring it to use the public key from your Power Pages site.

Best Practices and Security Considerations

  • Certificate Management: For production, use a certificate from a trusted CA. Implement a process for renewing the certificate before it expires and updating the thumbprint in your Power Pages site settings.
  • Secure Storage: Store your PFX file and its password securely, for example, in Azure Key Vault. Do not commit them to source control.
  • Token Expiration: The JWTs issued by Power Pages have a limited lifetime. Your API should always validate the exp (expiration) claim.
